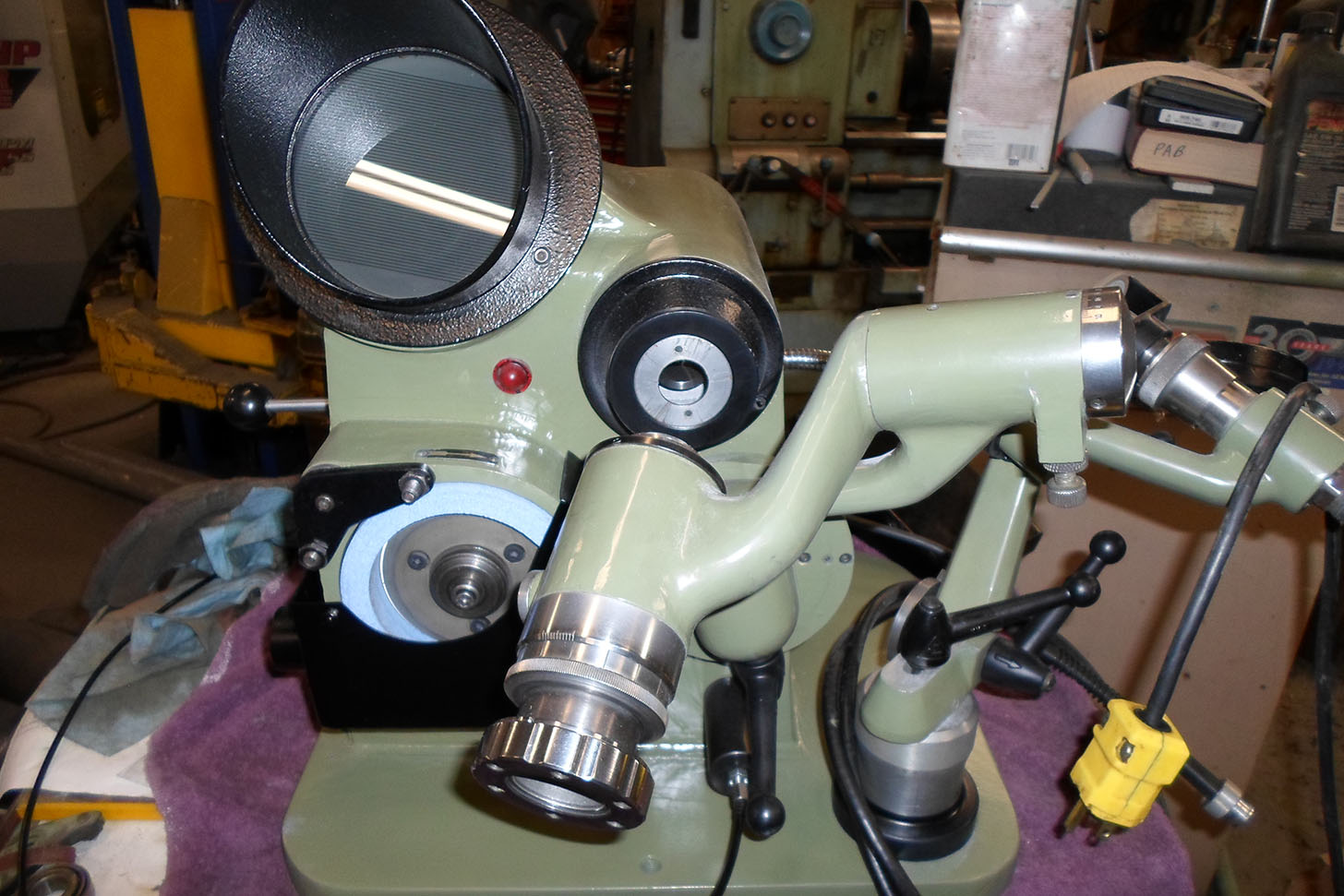

Standard equipment
- • Collet Holder: Small 4 Jaw Chuck .0126’ - .2559 dia (0,3 to 6,5mm)
- • Collet Holder: Large 4 Jaw Chuck .2362’ - .3937’ dia (6 – 10 mm)
- • Complete projector built in for quality control with 10 power lens
- • Point thinning attachment with built-in drive and flex drive cable
- Built-in wheel setup stop
- Point thinning CBN Wheel (Grit to be determined)
- Main CBN and or Diamond Grinding Wheel (Grit to be determined)
- Built-in diamond dresser
- Operator Manual
- “NEW LED LIGHTING SYSTEM” Installed
Specifications
- Materials HSS (CBN Wheel required)
- Materials Carbide Tipped - solid carbide (Diamond Required)
- Grinding Capabilities Point Angle 80 degrees to 150 degrees (180 for flat bottom 80 - 130 for left hand) Cutting Angle (-10 degree) 0 degree - 40 degree infinitely adjustable
- Motor 1/3 HP - 115 Volt Single Phase - Point thinning attachment 7000 RPM
- •imensions 17 x 14 x 18 approximate
Optional: Complete Vac system (to be quoted at the time of purchase)
Grinding Wheels are your choice
Wheel Pricing. Note: Of your choice will be additional charge on your Purchase Order.
